3D Formica Dining Table (Fusion360)
This is a 3D model of my brother’s formica table built in Autodesk Fusion360.
As I’m learning Fusion I like to challenge myself with building some items around me, which have no tutorial to follow.
The formica appearance textures are from retrorenovation.com

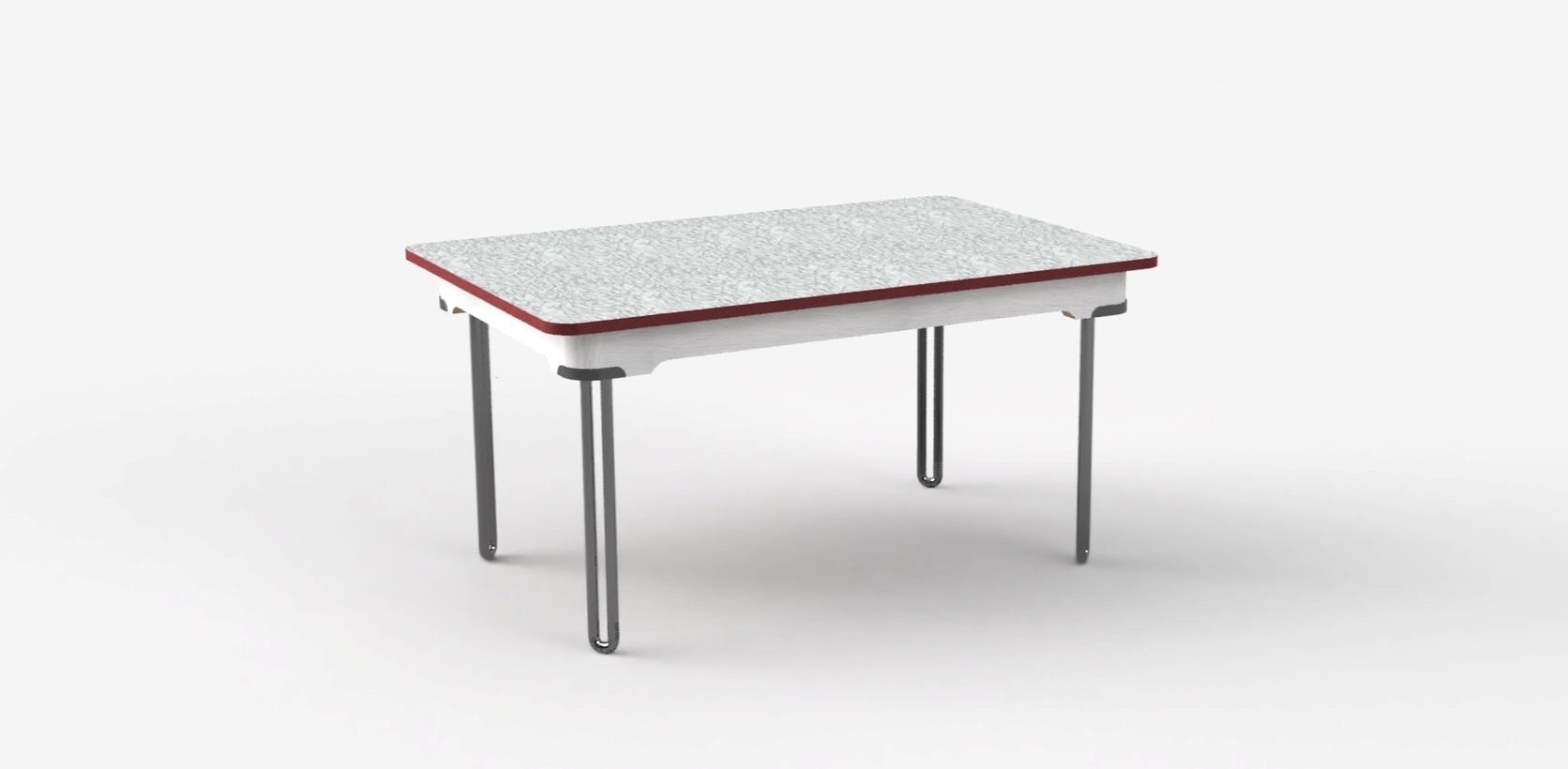

Finished table render

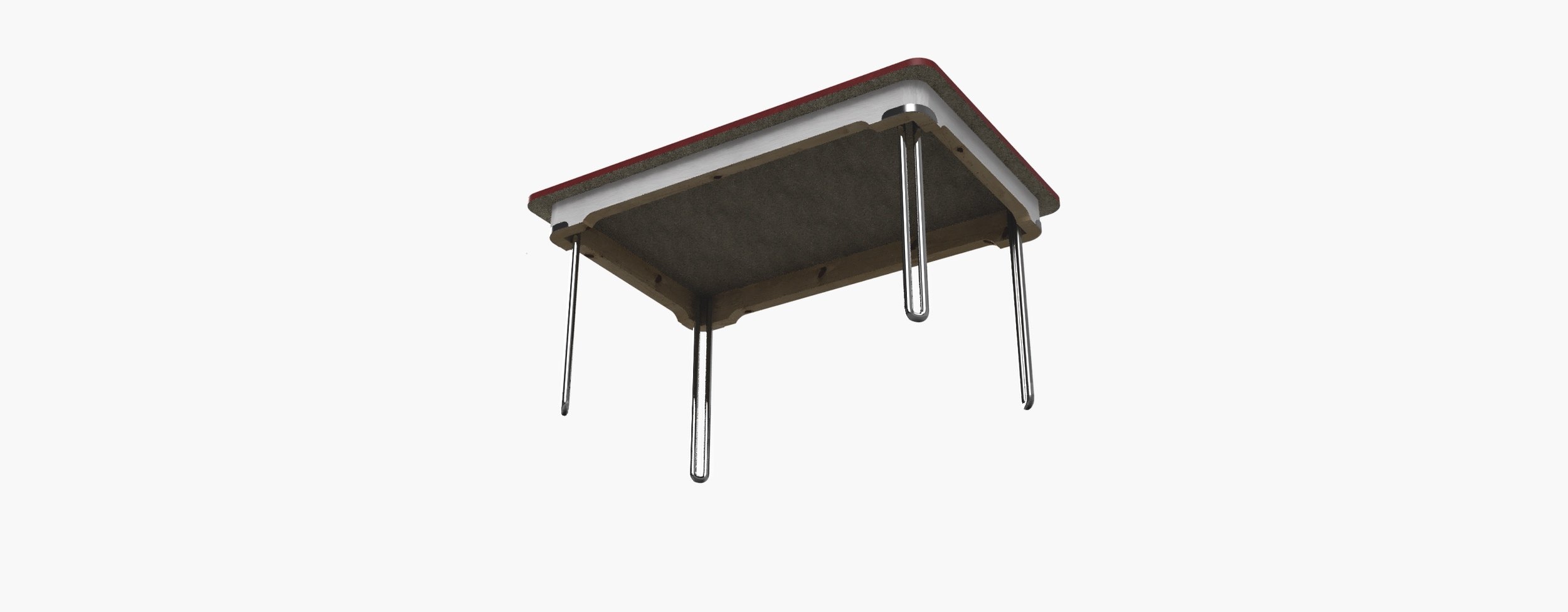

From underneth

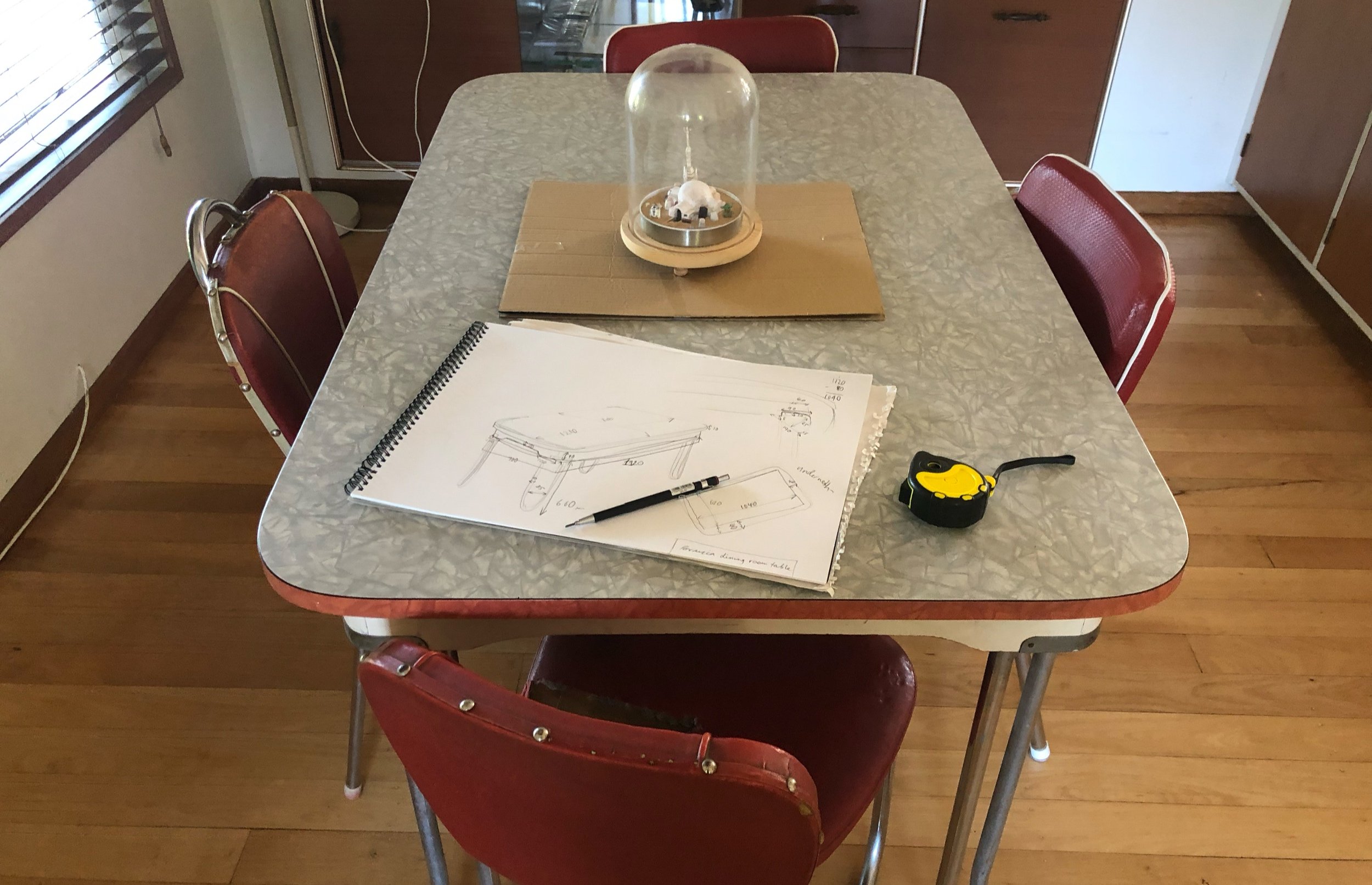

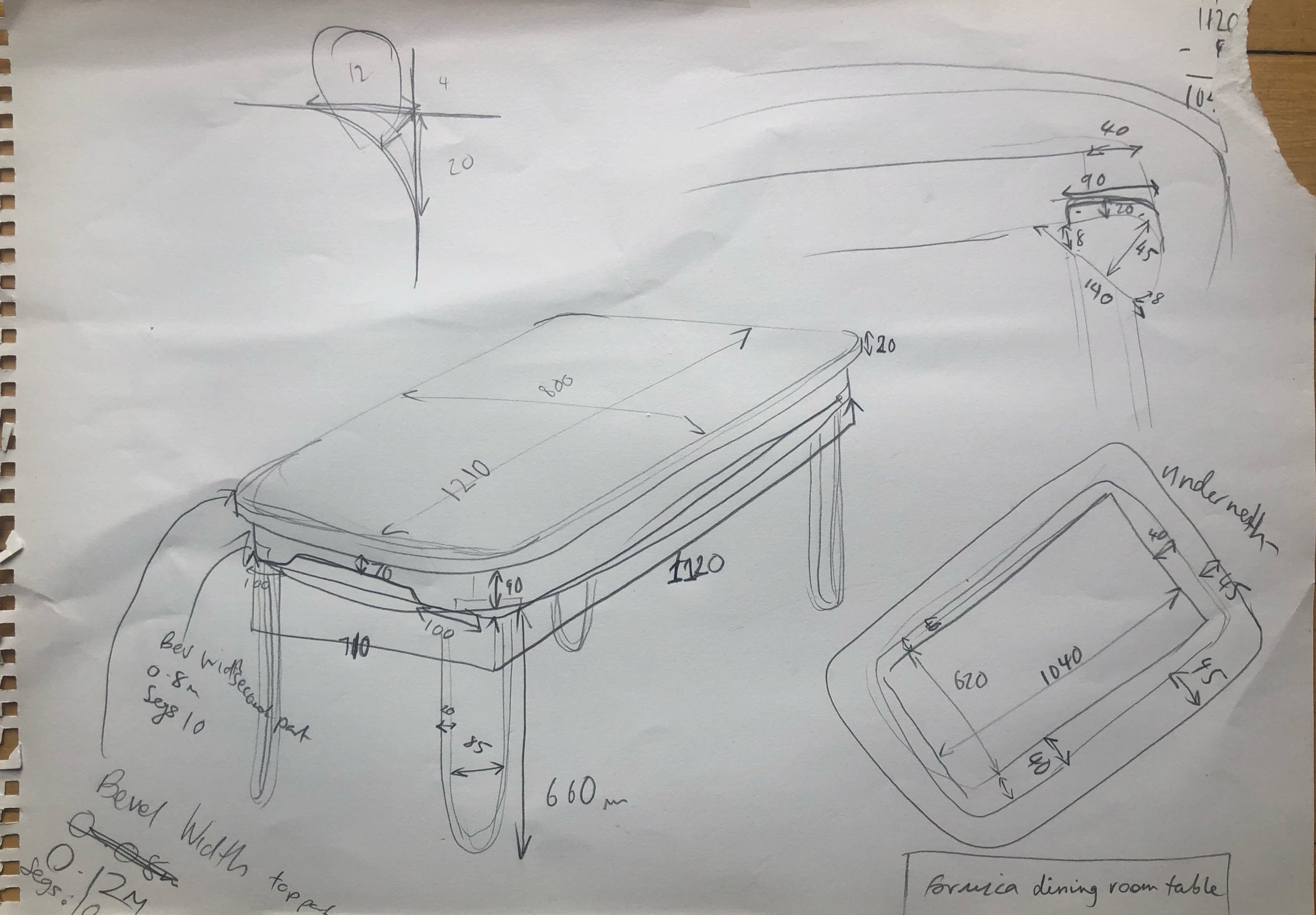

First I took the measurements of my brother’s table and created a rough document

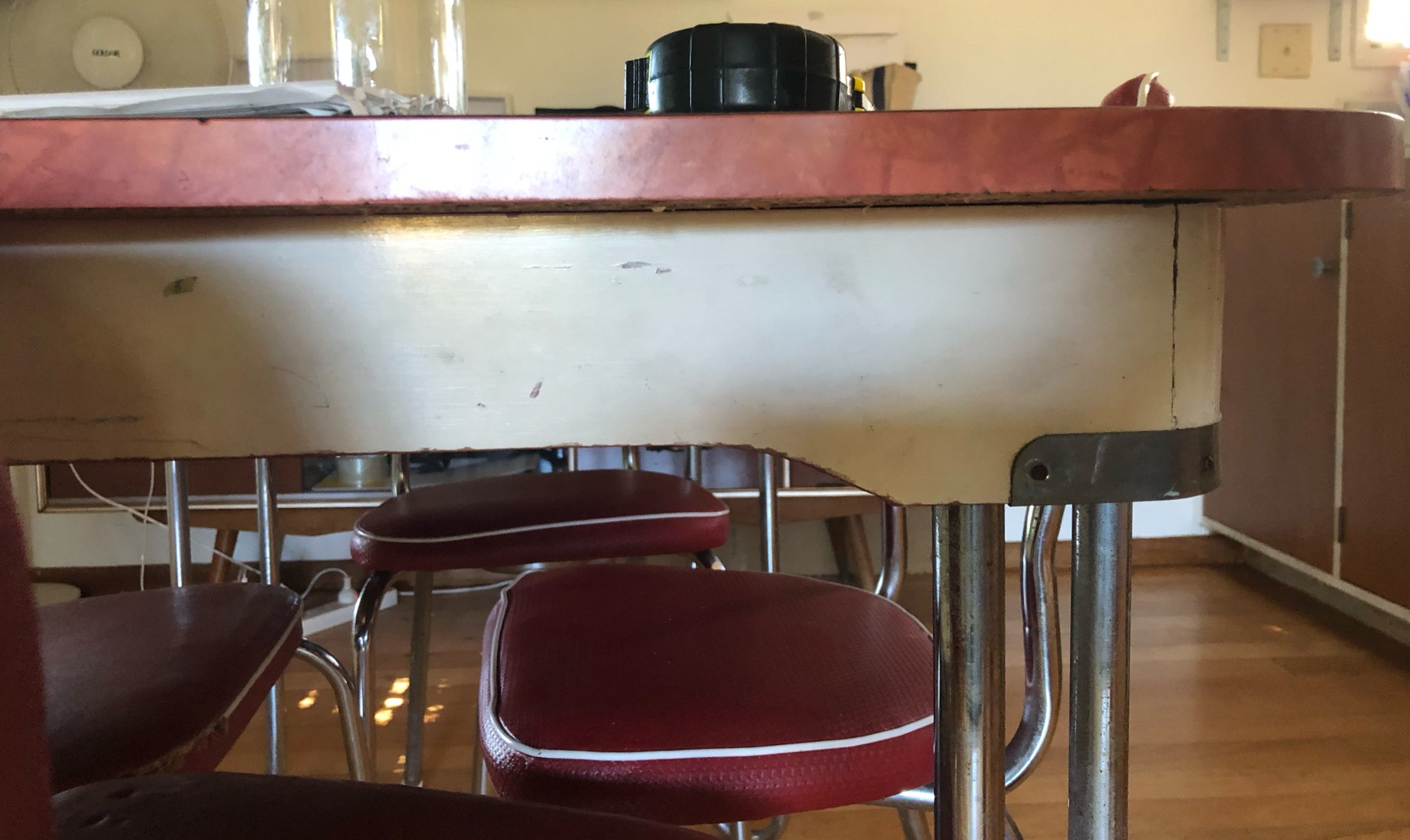

The table. Will need to build the chairs next!
The technical drawing created in Fusion

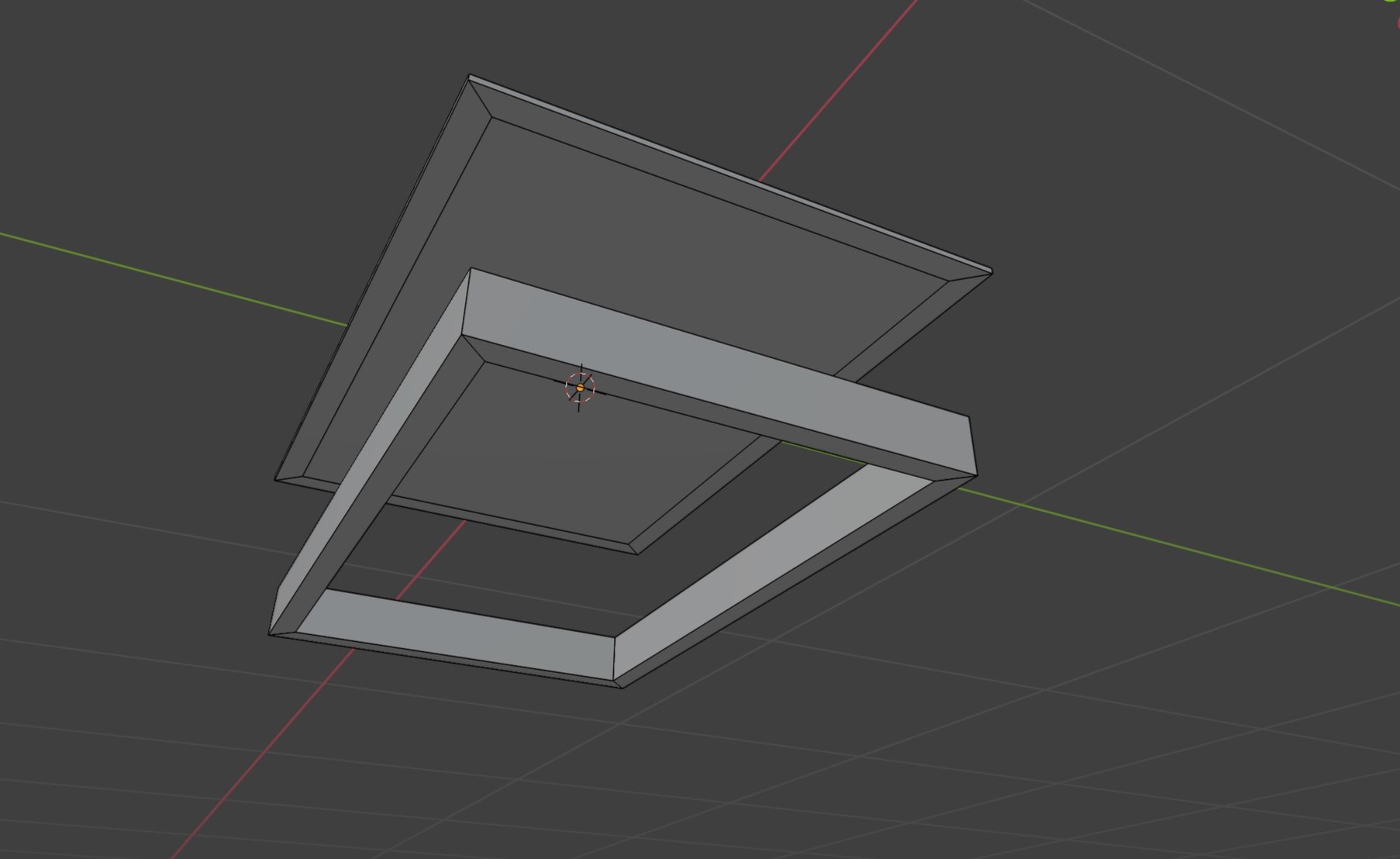

Started with basic rectangular components then added curves as I progressed

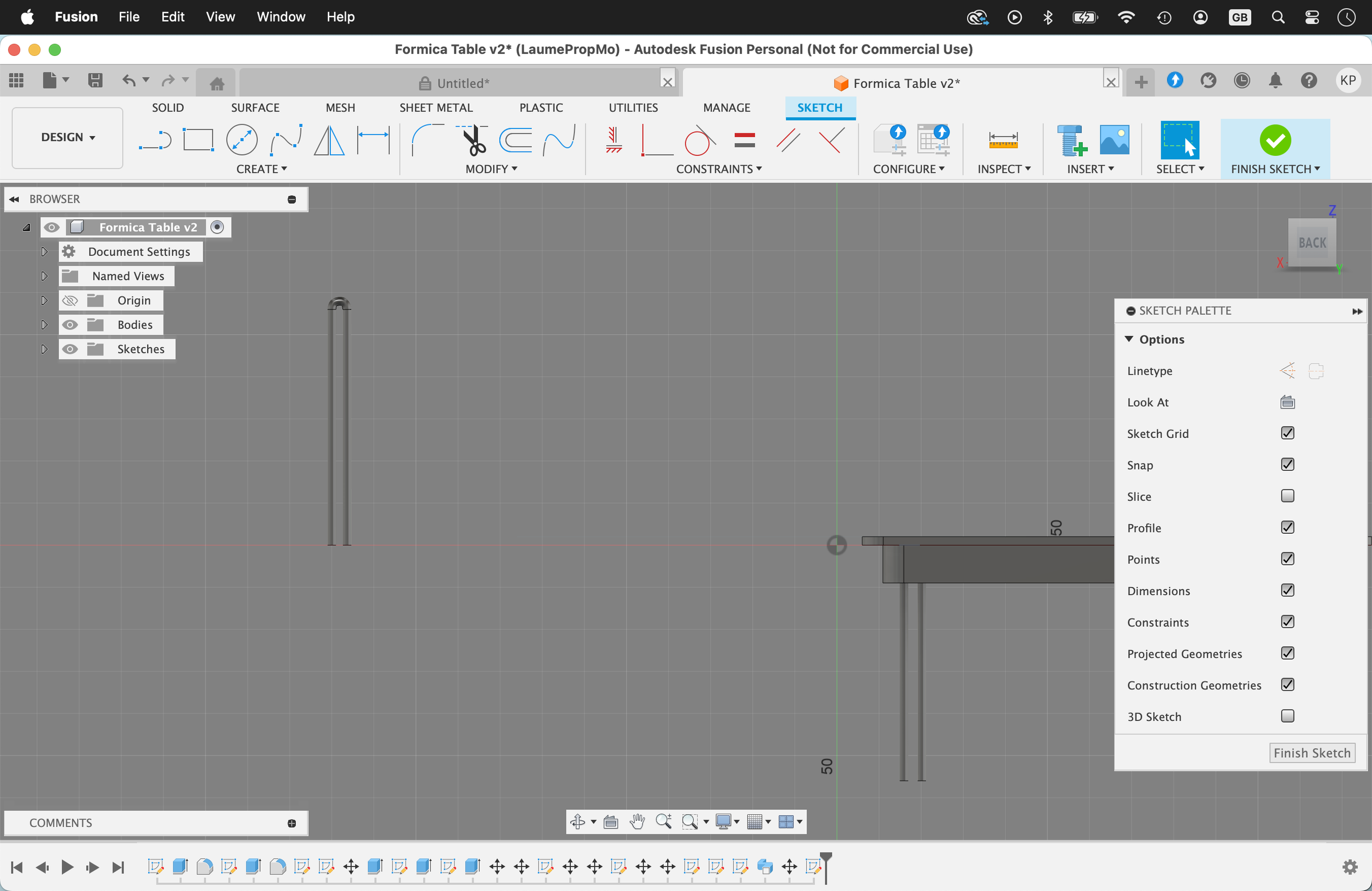

Creating legs for the table
Adding fillet to underside panel
Creating cutouts in the side panels
Creating a custom appearance using retro Formica textures from retrorenovation.com
Adding fillets to metal brackets
